How to Choose Between Standard vs Custom Multi Cable Transit for Procurement?

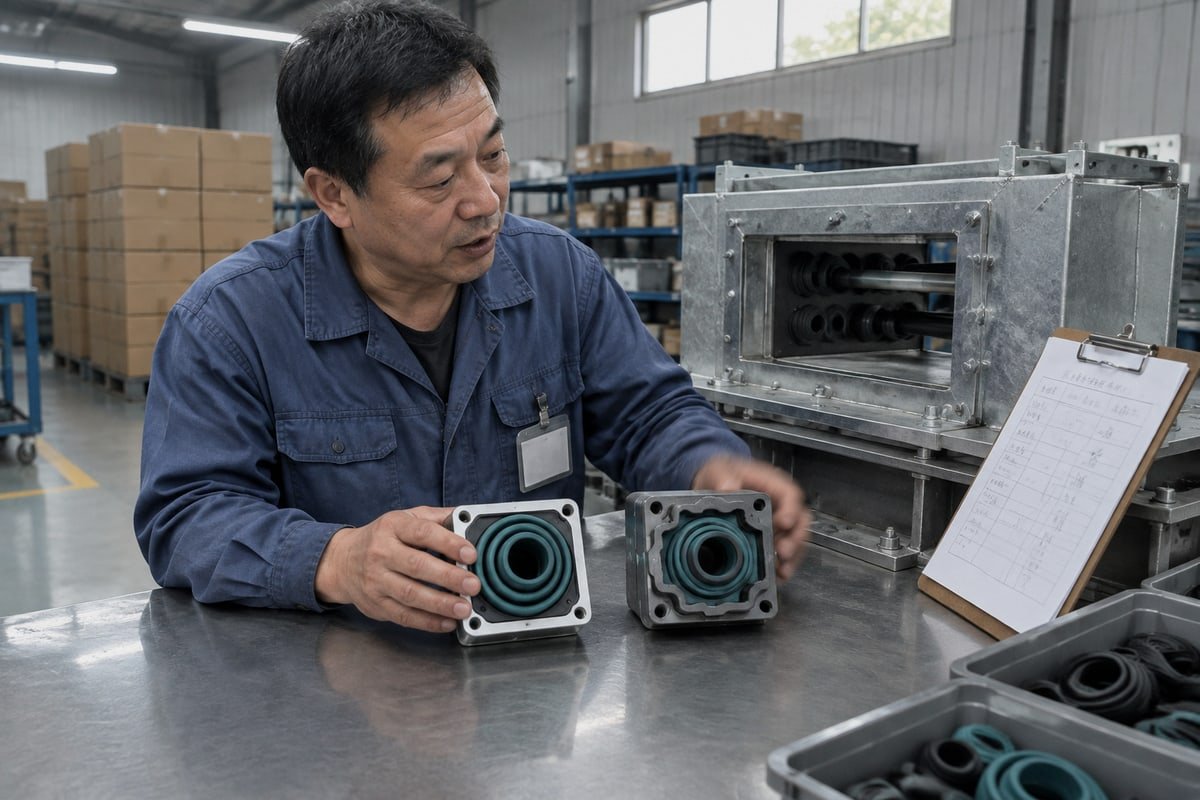

Every week our sales engineers field the same question: standard vs custom multi cable transit ¹ for procurement? Choose wrong and you pay in rework, or in a twelve-month wait.

Choose a standard multi cable transit when your penetration uses common 120-frame cutouts, mixed cable diameters within module ranges, and certified A-60 or IP68 ratings. Choose custom only when geometry, extreme chemical exposure, or owner standards make a catalog module a compromise.

That answer sounds simple. In practice, the decision hides inside four smaller questions. Does the module fit? What does custom really cost? Which documents prove the claims? And when should you test a sample first? I will take each one in turn.

How do I know if a standard MCT module will actually fit my existing 120-frame cutouts?

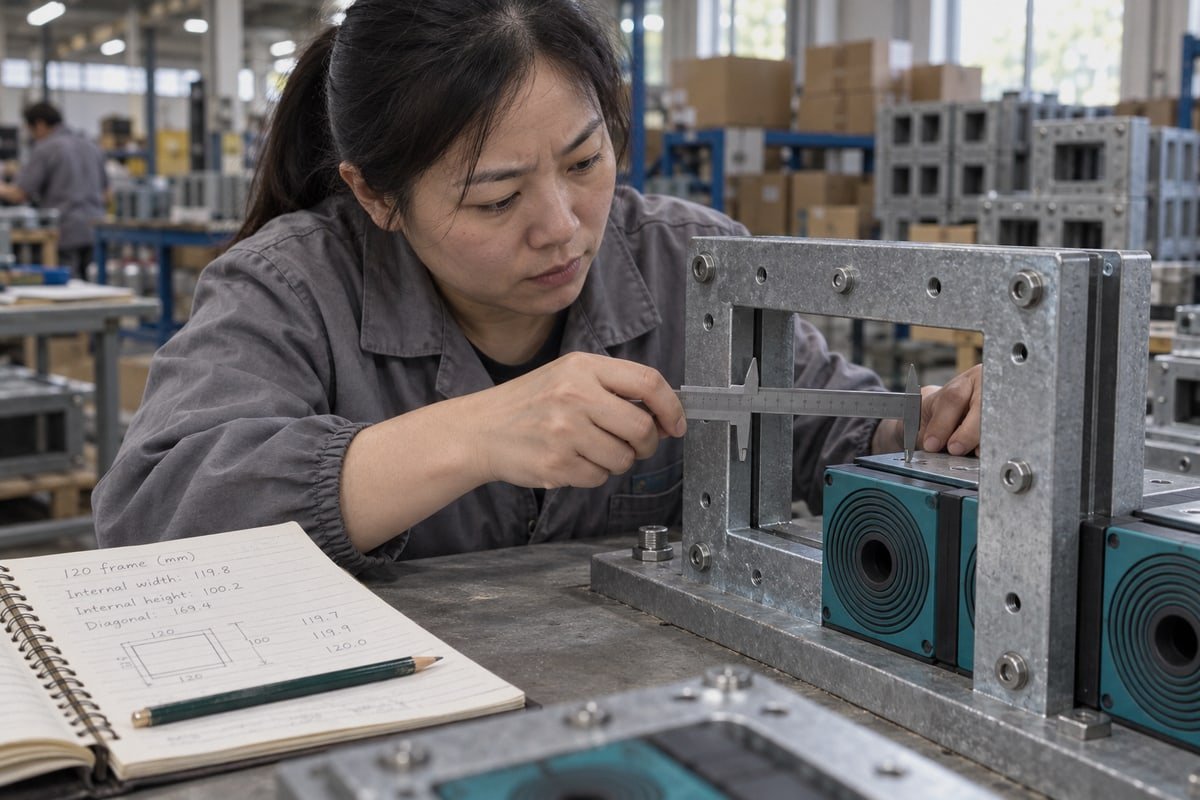

Last quarter our QC bench measured a European integrator's frame sample against our TSC modules with calipers. Fit was confirmed before any commercial talk began.

A standard MCT module fits your existing 120-frame cutout when its nominal width, height, and depth match the frame's internal opening, the compression wedge unit leaves correct packing space, and a cross-reference table maps your current model to the replacement. Verify with a physical sample.

What the 120 in 120-frame actually tells you

The number describes a frame family, not one product. Frames in this family share a nominal depth and a module grid. Modules come in set widths. Combinations of those widths fill the opening row by row. If your cutout was made for this family, a compatible module from another factory should slide into the same slot. The key word is "should". Weld distortion, paint thickness ², and stay plate thickness all eat into the packing space. That is why we publish our TSC and TSR dimensions with tolerances, not only nominal values. The same logic applies to round sealing assemblies. A TSR unit must match the pipe sleeve inner diameter, and the sleeve wall must be within the range the rubber can load against.

A fit checklist you can run before ordering

Step-core modules and mixed cable diameters

Our modules use step-core, halogen-free EPDM. Each core has peelable layers. The installer removes layers until the bore matches the cable. One module size then covers a range of diameters. This is the modular adaptability that lets standard modular sealing systems ³ handle retrofit installation requirements, where the cable list changed after the frame was welded. It also supports space-saving cable management, because you do not need one module size per cable size.

Cross-reference tables as procurement evidence

A cross-reference table maps the model you have today to the model we ship. It lists width, height, depth, cable range, and material side by side. It turns a sourcing decision into a document trail. We pair it with CAD and STEP files. Your engineer can drop the model into the assembly and check clearances before the sample even leaves our warehouse.

What cost and lead-time trade-offs should I expect when specifying a custom cable transit design?

Tooling cost against schedule risk is the trade-off our mold shop weighs every time an EPC asks for a non-catalog module size.

Expect a custom cable transit design to add mold or tooling charges, engineering hours, and a longer lead time, from a few extra weeks for a configured module to over twelve months for fully bespoke frames. Standard drop-in modules ship from stock, 40–60% below incumbent-brand pricing.

Custom does not always mean bespoke. In our order book, "custom" splits into three tiers. Each tier carries a very different cost and schedule profile.

Where the money actually goes

The mold is only the first line. A custom design also needs drawings, first-article inspection, and often a separate test campaign because the tested configuration no longer matches the product. Those engineering hours land on your invoice one way or another. On a configured module we absorb most of that, because our mold making is in-house and the base EPDM compound and step-core geometry stay unchanged.

Total cost of ownership, not unit price

Purchase price is the smallest part of the total cost of ownership. Installation labor, spare parts, inspection, and future expansion decide the rest. Standard modules win on all four. Stocked spare sealing modules ship fast. Spare capacity planning is easy, because a blank module block in the frame can be swapped for a cored module later without breaking the seal. A bespoke design ties every future spare to one mold. If that mold is retired, replacement becomes a project in itself.

The pro-custom objection, and where it holds

Buyers sometimes tell me a custom transit lowers long-term risk. They are right in one case. When a standard product forces a workaround, such as stacking two frames over an odd cutout, you inherit a hidden compliance cost. So the honest rule is a hybrid one. Use standard modular frames for around 90% of penetrations. Reserve custom engineering for non-standard structural geometry or extreme chemical exposure. Demand pressure from deepwater and LNG projects is pushing average selling prices up because of higher specifications, and the wider multi cable transit market ⁴ is growing at roughly 5.2%. That growth makes specialized elastomer supply tighter, not looser. A standardized second source spread across our Shaanxi, Shandong, and Hunan plants is how we keep continuity for our buyers.

Which certification and test documents do I need to compare standard versus custom sealing systems?

A sourcing manager in Rotterdam once replied to our quote with a single line: send the test reports, then we talk price.

Compare fire test reports to EN 1366-3 or UL 1479 with A-0, A-60, or H-120 ratings, IP68 ingress reports to IEC 60529, watertight and gastight pressure certificates, ATEX or IECEx approvals for hazardous areas, plus ISO 9001, IATF 16949, and class-society factory approvals such as Bureau Veritas.

The document set, and what each one proves

Product certificate versus system certificate

This distinction trips up many buyers. An IP68 report on a module says the rubber, the peelable cores, and the compression method work. A fire rating is a system result. It covers a specific frame, module layout, packing density, and wall type. When you compare standard versus custom sealing systems, ask which level each document covers. Our A-0 and A-60 reports, IP68 report, and pressure test documents are available on request, and we state the tested configuration on each one.

Why custom designs reopen the test question

A fully bespoke frame changes the tested system. That can mean a project-specific fire test, which adds weeks and cost. A configured module inside a standard frame usually stays within the tested envelope. This is the strongest technical argument for the standard-first approach, ahead of price. If a project needs ATEX compliant seals, confirm that the exact product family carries the approval, not only the brand.

Inspection after installation

Standard transits follow simple inspection protocols. A visual check of the compression wedges and a look at the module faces tell the inspector whether the seal is loaded. Bespoke designs often need custom inspection procedures, and in some cases non-destructive testing, to verify integrity over time. That recurring cost belongs in your comparison sheet.

When does it make sense to request free validation samples before committing to custom tooling?

One lesson from a decade of exporting: a sample that fails on a customer's bench costs far less than a mold that fails in the field.

Request free validation samples before any custom tooling when you have existing 120-frame cutouts, mixed cable diameters, or a second-source qualification to run. A physical fit test, compression check, and IP68 spot test on a standard module often removes the need for custom molds entirely.

A five-step sample validation process

1. Send us the frame drawing and cable schedule. We return a cross-reference table, a proposed module layout, and STEP files. Manufacturer design tools generate the bill of materials at this stage, which cuts ordering errors that plague custom specifications.
2. Receive the free sample set. We ship the exact TSC or TSR modules from the layout, plus a compression wedge unit if your frame needs one.
3. Run the fit test in your real frame. Check row fill, wedge travel, and stay plate clearance. Record the compressed height.
4. Run a compression and seal check. Peel the cores to the cable diameters on your schedule. Load the wedge. Apply a water or air pressure check at your own bench pressure.
5. Decide the route. Use the outcome table below.

What each outcome should trigger

When samples say no

Samples do not always support the standard route. A curved hull section, a proprietary switchgear enclosure, or a hazardous area with unusual media can push you to custom tooling. Even then, the sample stage is not wasted. It tells you which parts of the system can stay standard. In most of these cases the frame is custom and the modules are not. That hybrid keeps the tested seal, the stocked spares, and the simple inspection routine.

Second-source qualification without the drama

For BESS container builders and modular data center integrators, the sample step is usually a qualification exercise rather than a design exercise. The buyer already owns a frame standard. The question is whether a lower-cost module family passes the same acceptance tests. A free sample, a cross-reference table, and the test documents from the previous section answer that in a few weeks, and at zero tooling cost.

Fazit

The wrong transit choice costs rework or a year of waiting. Default to certified standard modules, validate with free samples, and reserve custom tooling for genuine exceptions.
