How to Avoid Urgent Change Orders When Procuring Multi Cable Transits?

Urgent change orders on multi cable transits ¹ rarely come from bad luck. Our factory has seen a single missed cable diameter stall a whole switchgear line. Prevention starts before award.

You avoid urgent change orders when procuring multi cable transits by freezing cable schedules with measured outer diameters, verifying frame compatibility against 120-frame standards, requesting certification documents before award, qualifying a second source with free validation samples, and pre-negotiating unit pricing for added modules in the contract.

Below, I walk through the four questions our sourcing customers ask most often. Each one maps to a specific point in the project procurement lifecycle where a small check saves a large field change.

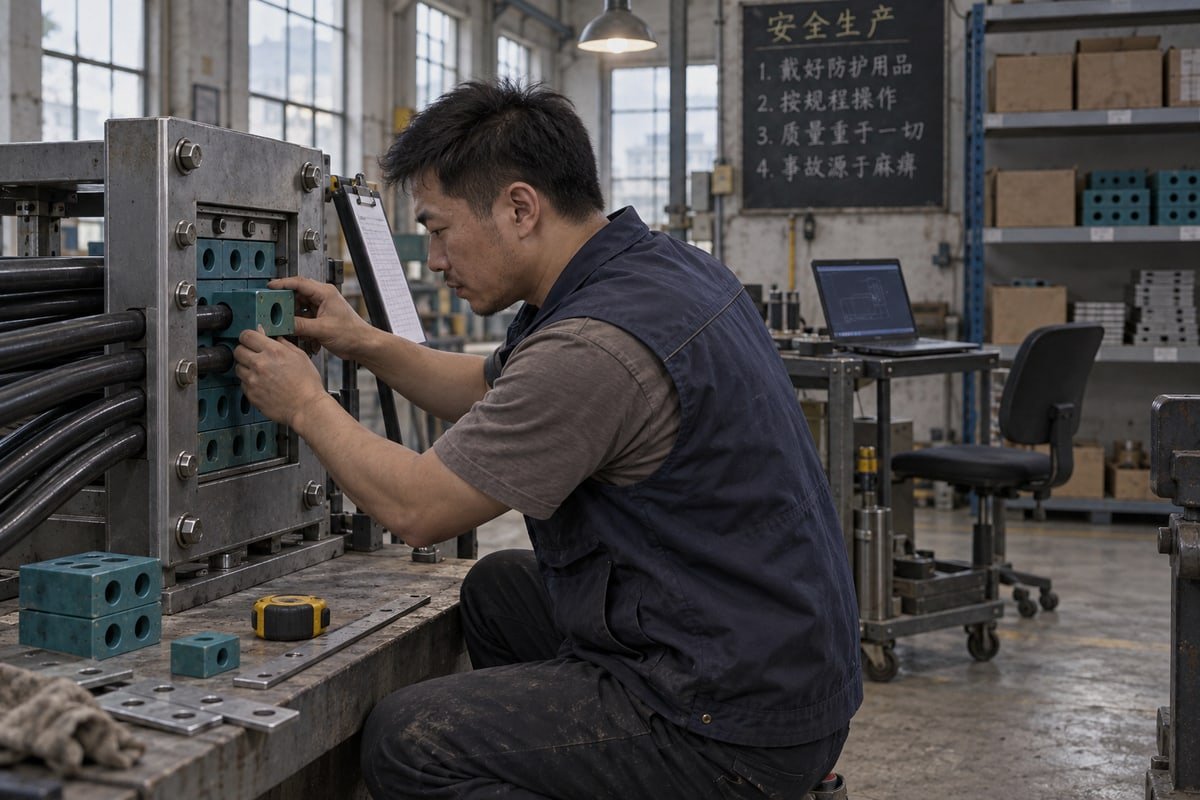

How can I verify frame compatibility before I commit to a cable transit order?

A sourcing manager in Germany once sent us a frame drawing with no cutout tolerance. We asked three questions before quoting. That habit prevents most compatibility change orders.

Verify frame compatibility by comparing the existing frame's internal opening, depth, and stay plate spacing against the supplier's model cross-reference table for 120-frame standards, then confirming with CAD or STEP files and a physical validation sample fitted into the actual cutout before you place the order.

Frame compatibility sounds like a drawing exercise. In practice, it is where most sizing surprises hide. Our TSC square modules and TSR round assemblies are built to drop into common 120-frame cutouts. Even so, we never quote a drop-in replacement from a model number alone. We ask for the numbers behind it.

Three numbers that decide whether a module fits

The first number is the clear internal opening of the frame, measured in millimetres, not read from a catalogue. The second is frame depth, because the compression unit needs travel room. The third is stay plate spacing, which sets how many rows of modules you can stack. If any of the three is missing, the cross-reference table is only a guess.

Use frame sizing software, then check it by hand

Manufacturer frame sizing software is good at converting a cable list into a module layout. It reduces manual counting errors. But the software only knows what the cable schedule tells it. We ask buyers to run the layout at the 60% and 90% design reviews as a density stress test. If a transit path is already at 90% fill on paper, congestion in the field is almost certain. That is the moment for cable schedule optimization, not after the frames are welded in.

Standardize frame sizes early

Projects that standardize on a short list of frame sizes get two benefits. Components become interchangeable between zones. And a spare module ordered for one frame will fit another. We supply CAD and STEP files for each TSC and TSR size so your designers can lock this in during technical specification alignment, before the engineering design freeze.

What documentation should I request upfront to avoid mid-project certification surprises?

During a BV factory audit, our QC team laid out A-60 fire test reports beside IP68 records. Buyers should demand that same paper trail before award, not after.

Request the fire rating certificate (A-0/A-60), IP68 ingress test report, watertight and gas-tight pressure test records (0.01–0.4 MPa), halogen-free material declarations, ISO 9001 and IATF 16949 certificates, and project-specific approvals such as ATEX, IECEx, or IMO before award, with each document tied to the exact module part number.

Certification surprises are the most expensive type of urgent change order. A rejected submittal does not just delay one frame. It can hold up a fire inspection ² or a class survey for a whole container or switchroom. The fix is to treat documents as a deliverable with its own schedule, not as an afterthought.

Match each document to a stage of the procurement lifecycle

Procurement teams that join the project at the 30% design phase can align long-lead multi cable transits with structural steel or bulkhead fabrication. That is also the right point to list required certificates. Here is how we recommend staging the requests.

Tie the certificate to the part number, not the brand

This is the point buyers miss most often. A fire test report covers a specific frame and module configuration. If you swap module sizes or add a blanking element, ask the supplier to confirm the tested configuration still applies. We keep our test documents available on request for each TSC and TSR size, so this check takes a day, not a week.

Build change control into the contract

Procurement guidance from bodies such as APTA calls for a change-order control system ³ with deadlines for contractor cost proposals, agency review, and negotiation. FTA guidance adds that out-of-scope work ⁴ should be handled as a new procurement, not as a change order. For multi cable transits this matters. Adding a whole new penetration is new scope. Adding two modules to an existing frame is a change. Your contract should define both cases and set unit prices for added modules in advance, so watertight integrity standards are never traded against schedule pressure.

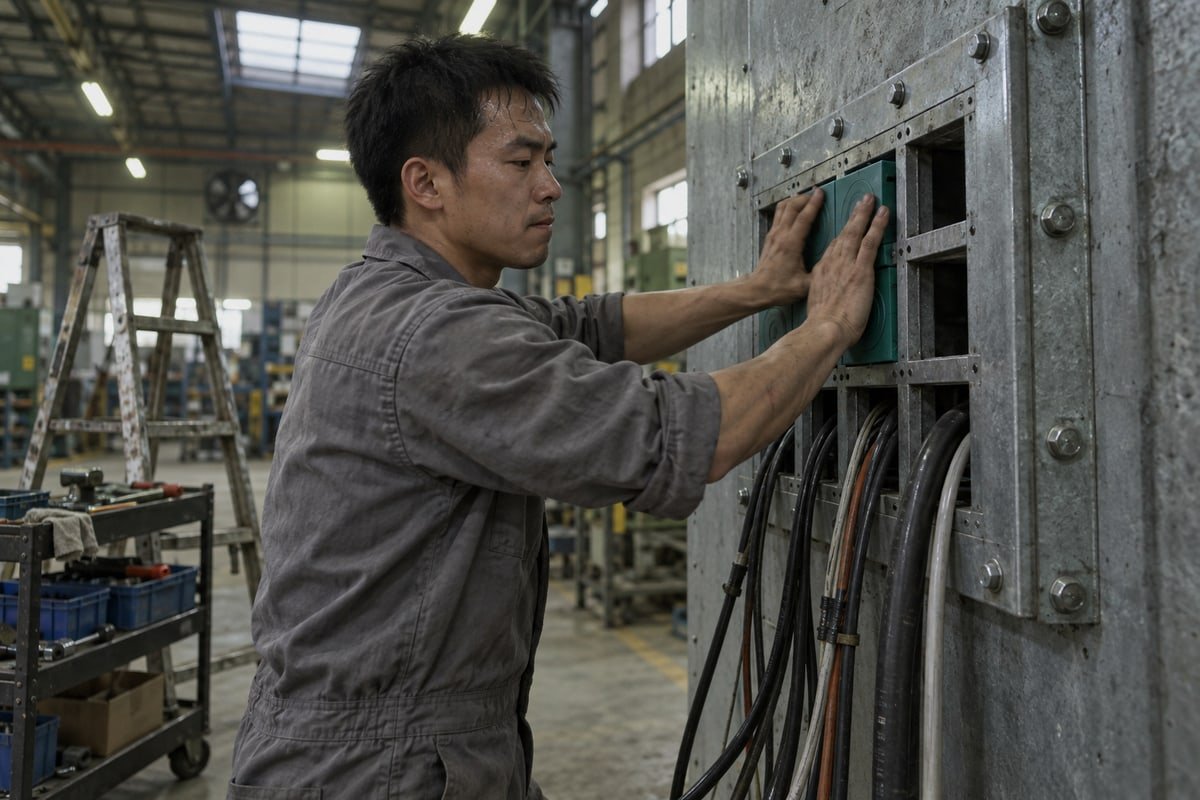

How do I qualify a second-source MCT supplier without risking delivery delays?

Every time a buyer weighs our 40–60% cost saving against their lead-time risk, we give one rule: qualify in parallel with the incumbent, never instead of it.

Qualify a second-source MCT supplier by running a staged pilot: audit certificates and factory ownership first, fit free validation samples into a live frame, place a small spare-module order to measure actual lead time, then split volume gradually while the incumbent supplier still covers critical-path deliveries.

Second sourcing is often framed as a cost decision. I see it as a schedule-risk decision that happens to save money. The objection I hear from EPC procurement teams is direct: a new supplier means a new failure mode. That is fair. The answer is to make the pilot small enough that a failure costs nothing on the critical path.

A five-step qualification sequence

1. Check that the supplier is a factory. Ask for production site addresses, registered capital, and patent lists. Our own footprint is Shaanxi headquarters with additional production in Shandong and Hunan, RMB 50M registered capital, and 38+ granted patents. A trading company cannot show that.
2. Audit the certificates against your project scope. ISO 9001 and IATF 16949 for the system, a BV-approved factory for marine and offshore work, and product reports for A-0/A-60 and IP68. Add ATEX, IECEx, or IMO checks if the zone requires them.
3. Fit free validation samples. Use a live frame, not a test bench. This is covered in detail in the next section.
4. Order spare modules first. Spare sealing parts are low risk and fast to ship. They give you a real lead-time measurement and a look at packing quality.
5. Split volume by frame type. Move non-critical frames first. Keep the incumbent on anything tied to a fire inspection date until the second source has delivered on time twice.

Contract terms that protect the schedule

When a change really is urgent

FTA guidance is clear that issuing a change order before price and schedule are agreed is not best practice. If the site cannot wait, obtain a not-to-exceed price ⁵ and keep time-and-material records so the final price is settled soon after. Our in-house mold making helps here. A custom module size for an odd cable diameter does not require a new supplier search, so the emergency stays inside the existing contract.

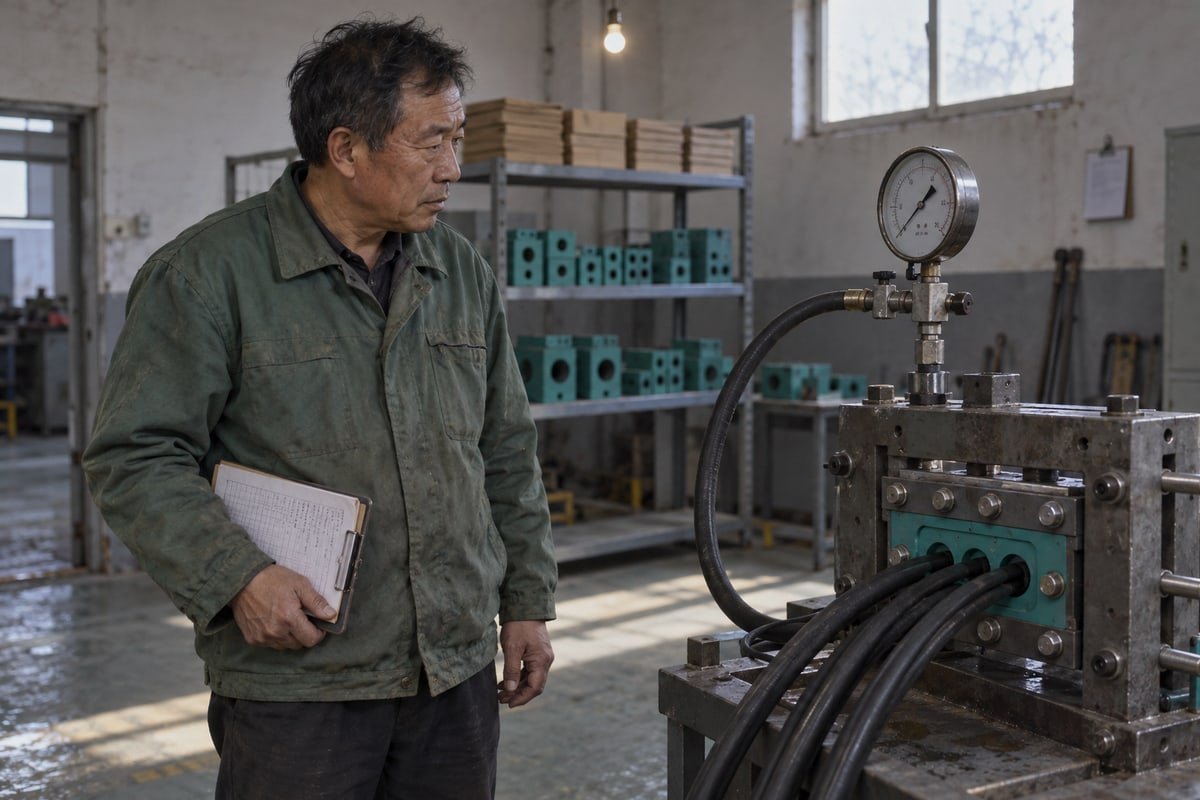

Can free validation samples help me catch sizing issues before installation?

One lesson from shipping sealing modules since 2013: a step-core sample in the buyer's hand catches more sizing errors than any spreadsheet we exchange.

Yes. Free validation samples let you fit real modules around real cables, confirm measured outer diameters fall inside each step-core range, check frame depth and compression unit travel, and expose Material Take-Off errors weeks before installation, when a correction is an email rather than an urgent change order.

Most sizing errors trace back to one thing. The cable schedule lists nominal sizes, but the module seals against the actual jacket. A cable listed as 20 mm can measure 21.5 mm after the jacket tolerance and a vendor change. A step-core module absorbs some of that range, because you peel layers to match the diameter. It cannot absorb a cable that is outside the module's range altogether. A sample fitted around the real cable settles the question in minutes.

How we recommend running a sample test

Take three or four cables from the actual drum, not from the catalogue. Measure the outer diameter with a caliper at two points. Peel the step-core EPDM to the matching layer and close the module halves. Then check three things: the cable sits without a gap, the module face is flush with its neighbours, and the compression unit has travel left. If all three pass, the Material Take-Off accuracy for that size is confirmed. If not, you change the module size now.

What the sample reveals that the drawing does not

Spare capacity planning starts with the sample

A sample test also exposes how full the frame will be. Ranking guidance recommends 20–30% spare capacity in every transit frame at initial procurement so late moves, adds, and changes need no new hardware. If your sample layout shows less than that, add blanking elements now and swap them for modules later. Some projects go further and RFID-tag components so the correct fire-rated module lands in the correct zone. We support that with clear nameplate data and part marking on every module we ship.

Conclusion

Urgent change orders on multi cable transits are symptoms of weak definition, not bad luck. Freeze schedules early, demand documents, qualify a second source, and test free samples.
